Vacuum Suction Table for Paper Conservation and Document Restoration

Restoring aged manuscripts, brittle archival documents, historic maps, and delicate textiles requires exceptional control over moisture and physical handling. Conservators frequently encounter extreme challenges when attempting to humidify, flatten, wash, and remove stains from fragile cellulose fibers. Using an industrial vacuum suction table integrated with a microclimate humidification hood provides the ultimate physical protection and operational precision for delicate cultural heritage items.

Gentle Microclimate Humidification for Paper Flattening

Creased and distorted historical papers must absorb moisture before they can be safely flattened. Direct water spraying or immersion carries a high risk of localized tidelines, adhesive degradation, and irreversible bleeding of water-soluble inks and historical pigments.

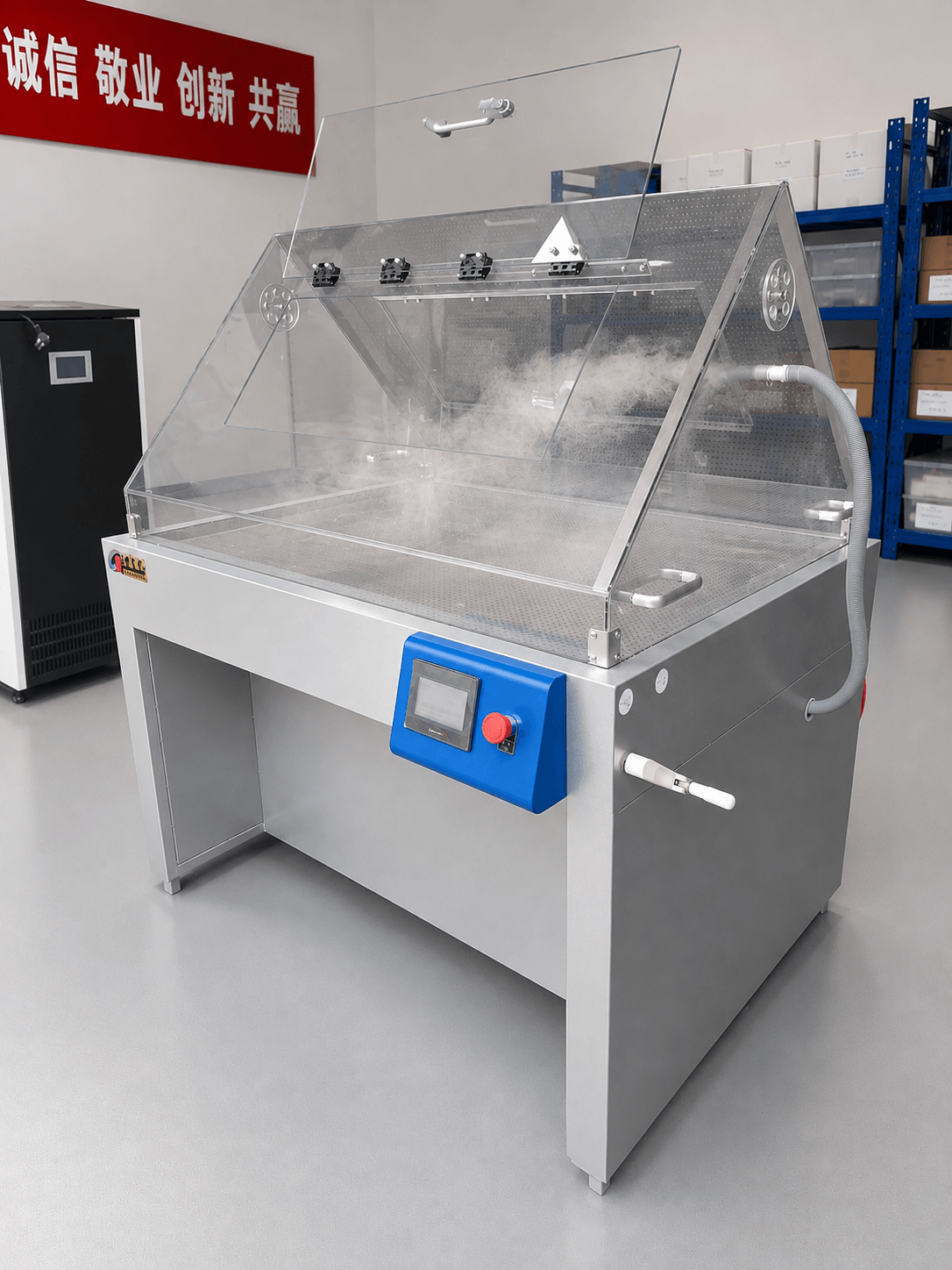

The integrated transparent acrylic hood establishes a fully enclosed microclimate over the treatment area. By introducing ultrasonic cold mist into this controlled space, the paper fibers absorb ambient moisture naturally and uniformly. This non-contact humidification process gently relaxes brittle paper without wetting the surface, enabling safe relaxation and crease removal for ancient bindings and fragile documents.

Controlled Negative Pressure for Stain Removal and Washing

When historical paper is subjected to aqueous washing, deacidification, or localized chemical stain reduction, wet cellulose fibers lose structural strength and become extremely susceptible to mechanical tears. Liquid treatments applied on flat, non-porous surfaces can also cause contaminants to spread laterally across the document.

The perforated stainless steel worktop generates smooth, uniform negative pressure across the entire treatment area. This controlled vacuum suction securely holds fragile wet documents in place without mechanical friction or edge curling. As cleaning solutions or solvents are applied, the suction pulls liquids and dissolved degradation products straight downward through the sheet, preventing haloing and ring formation while speeding up drying times.

Precision Control for Diverse Cultural Heritage Materials

Different conservation tasks demand distinct levels of airflow and humidity. Treating thick parchment requires entirely different parameters than handling thin Asian paper or fragile historic textiles.

Equipped with an intuitive digital PLC touchscreen interface, conservators can make fine adjustments to both the vacuum suction intensity and ultrasonic mist volume in real time. This digital control allows precise replication of treatment parameters, supporting repeatable conservation protocols across diverse collections including rare books, prints, drawings, maps, and organic artifacts.
