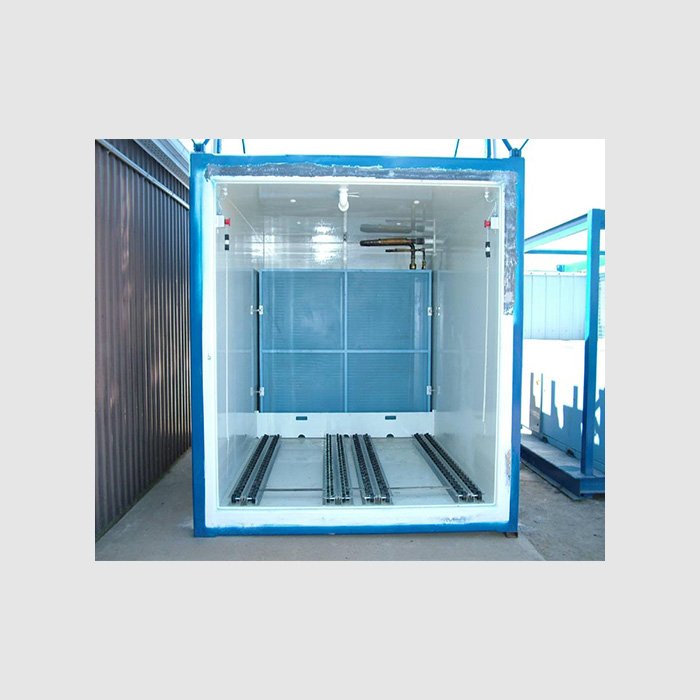

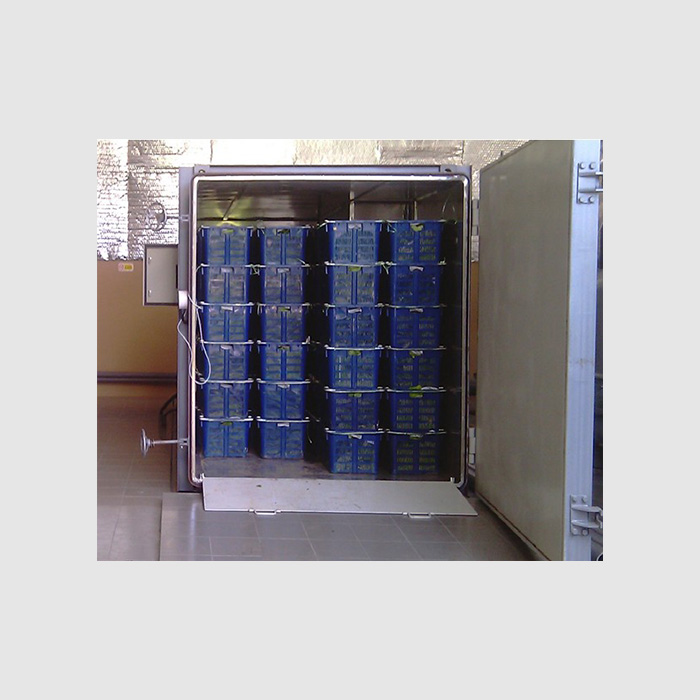

Vacuum precooler DCZKYL-800

The vacuum pre cooling machine DCZKYL-800 is a pre cooling treatment equipment used for materials such as food, vegetables, fruits, etc. Its working principle is to evacuate the environment where the material is located through a vacuum system, causing the moisture on the surface of the material to evaporate rapidly, thereby achieving the purpose of pre cooling. The specific introduction is as follows:

1. Pre cooling temperature: adjustable range from 0 ℃ to 20 ℃, can be adjusted according to different material requirements.

2. Vacuum degree: 0.09Mpa, which can effectively reduce the oxygen concentration in the environment where the material is located and extend the shelf life of the material.

3. Cooling capacity: 800kg/h, suitable for small and medium-sized production needs.

4. Compressor power: 11kw, using energy-saving compressors to reduce energy consumption.

5. Inlet size: ф 100mm, outlet size: ф 100mm, convenient for material entry and exit.

6. Power supply: 380V/50Hz, safe and reliable.

7. Weight: Approximately 1000kg, convenient for handling and installation.

8. Applicable fields: Widely used in the pre cooling treatment of food, vegetables, fruits and other materials, it can effectively improve the quality and shelf life of materials.

The above is an introduction to the vacuum precooler DCZKYL-800. Specific parameters and performance indicators may vary depending on the manufacturer and model, and need to be selected and compared according to actual needs.

The DCZKYL-800 vacuum pre cooler uses a vacuum system to evacuate the environment in which the material is located, causing the moisture on the surface of the material to evaporate rapidly, thereby achieving the purpose of pre cooling. This principle is based on the phase transition principle in physics, which means that in a vacuum environment, the boiling point of water decreases and the latent heat of evaporation increases, thereby achieving rapid cooling and temperature reduction.

Vacuum pre cooling machines are widely used for pre cooling of materials such as food, vegetables, fruits, etc., which can effectively improve the quality and shelf life of materials. It has broad application prospects in fields such as food processing and cold chain logistics.

Equipment model: DCZKYL-800

Equipment price: ￥ Price inquiry by phone

Equipment brand: Dachang

Manufacturer: Ganzhou Dachang Air Conditioning Equipment Engineering Co., Ltd

Equipment Material: Freight Logistics

Date of manufacture: August 15, 2020

Transportation method: Carbon steel material

Pre cooling temperature: adjustable range from 0 ℃ to 20 ℃, can be adjusted according to different material requirements.

Vacuum degree: 0.09Mpa, which can effectively reduce the oxygen concentration in the environment where the material is located and extend the shelf life of the material.

Cooling capacity: 800kg/h, suitable for small and medium-sized production needs.

Compressor power: 11kw, using energy-saving compressors to reduce energy consumption.

Inlet size: ф 100mm, outlet size: ф 100mm, convenient for material entry and exit.

Power supply: 380V/50Hz, safe and reliable.

Weight: Approximately 1000kg, convenient for handling and installation.
