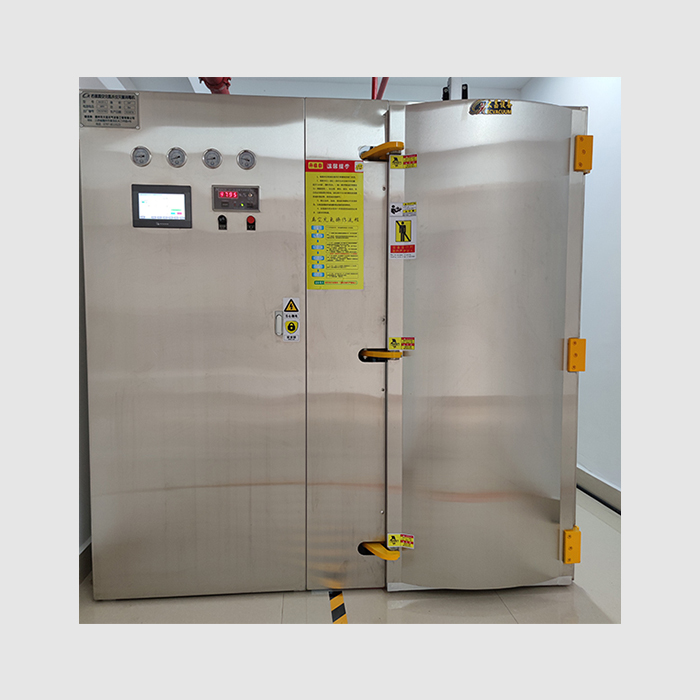

Archive insecticide disinfection machine

Archive insecticidal disinfection machine is a specialized equipment used for insecticidal and disinfection of archives, cultural relics, books and other items. It adopts advanced technology and equipment, which can effectively kill various pests, molds, and bacteria, and protect the security and integrity of archives. This article provides a detailed introduction to the archive insecticide and disinfection machine

Feature Introduction

Insecticidal: The archive insecticidal disinfection machine adopts efficient insecticidal technology, which can effectively kill various pests and protect the safety and integrity of archives.

Disinfection: The archive insecticide disinfection machine adopts advanced disinfection technology, which can disinfect archives, cultural relics, books and other items, remove surface bacteria and viruses, and protect the cleanliness and safety of items.

Vacuum: The archive insecticidal disinfection machine adopts vacuum technology, which can extract the air inside the item, forming a vacuum environment, causing pests inside the item to die due to lack of oxygen.

Intelligence: The archive insecticide disinfection machine adopts an intelligent control system, which can automatically control the disinfection process, avoiding human errors and omissions in operation.

Safety: The archive insecticide disinfection machine adopts safe and reliable equipment and materials, which can ensure the safety and reliability of the disinfection process and avoid damage to items.

Oxygen isolation: Ensure that the oxygen content of the equipment is ≤ 1 ‰ during operation. Produce nitrogen gas from the supporting nitrogen generator.

Evaporation: During the disinfection process, it can cause the liquid inside the insect body to evaporate, damaging the protein of adult insects, larvae, eggs, and pupae.

Insect extermination: capable of 100% killing adult insects, larvae, insect eggs, pupae, and spores in the collection.

Sterilization: It can kill 100% of oxygen consuming bacteria, and block the growth, breeding, and reproduction of anaerobic bacteria and filamentous fungi.

Dust removal: It can remove 100% of the dust attached to the surface of cultural relics, archives, ancient books, etc.

Odor removal: capable of 100% removal of all odors.

Remote control: The on-site equipment can be operated through the mobile APP software (in any area of the network), and the parameter screen is consistent with the touch screen (optional)

Automatic humidification: When nitrogen is injected into the disinfection room, it is humidified by an automatic humidifier to ensure that the humidity in the disinfection room is between 35% and 60%, and the humidity value can be set between 0% and 100% by oneself.

Nitrogen production: During the disinfection process, 99.99% high-purity nitrogen gas can be produced and injected into the disinfection room.

Display: Oxygen content, vacuum degree, temperature and humidity detection display function.

Pest control time: The entire disinfection time is between 15 hours and 72 hours.

Working Principle

Using pure physical methods, nitrogen is evacuated and filled with oxygen, depressurized, evaporated, insecticidal, sterilized, and disinfected without adding any chemicals or emitting any harmful gases or pollutants. Kill pests, molds, and bacteria inside the item, while removing bacteria and viruses from the surface of the item to protect its cleanliness and safety.

Technical Specifications

1. Volume 5 cubic meters, made of stainless steel 304 material.

2. Working voltage: AC380V (three-phase five wire) consisting of A, B, and C phases plus N (zero) and E (ground) wires.

3. Equipment structure: It consists of a vacuum disinfection room, a nitrogen generator (built-in air compressor, freeze dryer, air storage tank), a vacuum pump, and a PLC control system, which are combined to form an integrated machine.

4. Work pressure: 0.2Kg/cm2

5. Working vacuum degree: 100PA.

6. Working mode: two sets of manual mode or automatic mode.

7. Nitrogen injection method: Automatic injection and replacement through the program.

8. Nitrogen source: Nitrogen generator.

9. Door opening and closing: manual mechanical transmission mechanism.

10. Power consumption: ≤ 8.5KW.

11. Vacuum pump: water treatment>100-500g/h, vacuum pump pumping speed 4-63L/S, vacuum pump noise less than 50dB.

12. Nitrogen generator: adopts a pressure swing adsorption nitrogen production system, with a nitrogen production rate of more than 5M3 per hour, producing nitrogen with a purity of 99.99% and a noise level of less than 56dB.

13. Temperature and humidity sensors and vacuum sensors: Temperature and humidity sensors are used to control the humidity of archives in the disinfection room during the disinfection process. The vacuum sensor can accurately measure positive and negative pressure.

14. Vacuum detector: capable of accurately measuring positive and negative pressure, equipped with a direct coupled vacuum pump, and equipped with an oil mist filter and noise filter on the vacuum pump.

15. Nitrogen content measuring instrument: a specialized instrument for detecting oxygen content, used to determine the oxygen content in disinfection. Require pure 99.99% measurement.

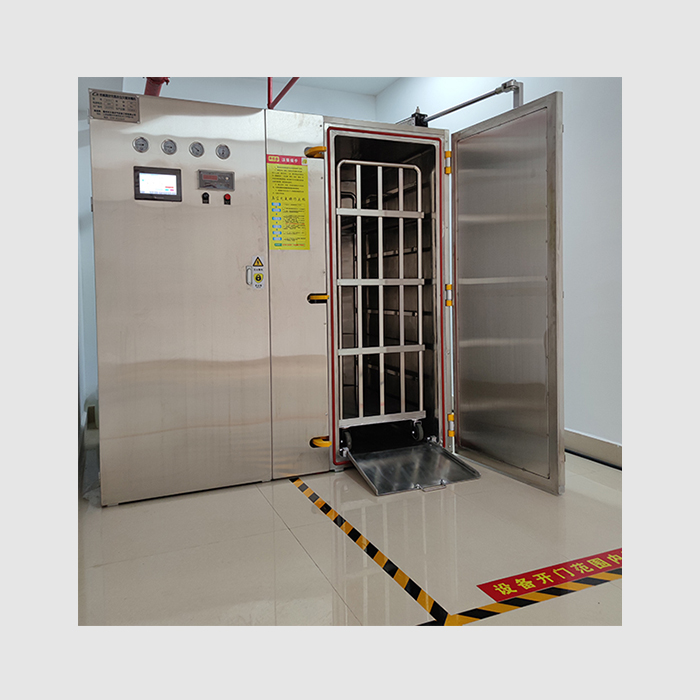

16. Requirements for vacuum nitrogen filling disinfection equipment: The main body of the equipment is a bookshelf type container with a movable trolley that can directly travel to and from the warehouse.

17. Sealing of doors: It is required to use an "O" - shaped rubber ring in the dovetail groove on the fixed flange to achieve positive and negative pressure sealing.

18. After the device is positioned, there are two support feet to adjust the level and stabilize the device.

19. The material of the disinfection room is USU304 stainless steel, and the interior of the disinfection room is matte. The surface of the disinfection room is treated with USU304 stainless steel matte. The disinfection room is connected to the vacuum pump through stainless steel corrugated pipes.

20. The operation of the entire equipment should be programmed, automatically monitored, and controlled by PLC. Equipped with two sets of operation: automatic and manual. When the main power is turned on and enters the automatic working state, it automatically completes, locks the door, evacuates, produces nitrogen gas, fills nitrogen gas, replaces nitrogen gas, maintains pressure automatically, and releases gas automatically. All parameters can be displayed on the touch screen. During manual operation, it is possible to perform single operations such as opening, closing, unlocking, closing, vacuuming, producing nitrogen gas, filling nitrogen gas, and releasing gas. To meet various different state needs. The entire control system is composed of internationally renowned brand electrical appliances.

That's all for the brief introduction of the archive insecticide disinfection machine. As for customizing and understanding specific disinfection plans, please contact our staff or visit the factory for inspection.

Using pure physical methods, nitrogen is evacuated and filled with oxygen, depressurized, evaporated, insecticidal, sterilized, and disinfected without adding any chemicals or emitting any harmful gases or pollutants. Kill pests, molds, and bacteria inside the item, while removing bacteria and viruses from the surface of the item to protect its cleanliness and safety.

The application scope of archive insecticidal disinfection machine is very wide, mainly including but not limited to the following aspects:

1、 Archives and Library Management Field

Archive:Used for comprehensive insecticide and disinfection treatment of precious archives before storage, ensuring that the archives are not damaged by pests and fungi during the preservation process.

library:Regularly disinfect books with insecticides to maintain their cleanliness and integrity, providing readers with a safer reading environment.

School ArchivesRoom:Protect important documents such as school archives and student information from damage caused by pests or fungi.

2、 Protection of Cultural Relics and Historical Cultural Heritage

museum:Used for moisture-proof, preservation, storage, disinfection, sterilization, and insecticide treatment of cultural relics to ensure their good preservation status.

Historical and cultural heritage protection units:Protect precious cultural relics and historical materials from damage caused by pests or fungi.

3、 Government agencies and public institutions

government sector:The government archives store a large number of important documents, which require regular processing using archive insecticidal disinfection machines to ensure the safety and integrity of the documents.

government-affiliated institutions:Scientific research institutions, cultural institutions, etc. need to regularly carry out insecticide and disinfection treatment on precious materials, experimental records, etc. that need to be preserved.

4、 Private Collection and Art Protection

Private collectors:For precious personal collections such as ancient books, artworks, etc., using archival insecticidal disinfection machines for protection can prevent them from being damaged.

art gallery ：Moisture proofing, preservation, and disinfection treatment should be carried out on artworks to ensure their good preservation condition.

Model: DCZKCD-5

Brand: Dachang

Size: 5.00 cubic meters

Dimensions: Length 3150mm * Width 1600mm * Height 2050mm

Internal dimensions: length 2150mm * width 1300mm * height 1800mm

Weight: 1880kg

Aviation material quality: 680kg

Can hold files: 1120-1132cm

Voltage: 380v/50hz

Power: 8.5kw

Material: 304 stainless steel

Manufacturer: Ganzhou Dachang Air Conditioning Equipment Engineering Co., Ltd

Shipment date: October 29, 2020

Transportation method: Freight logistics

1. Volume 5 cubic meters, made of stainless steel 304 material.

2. Working voltage: AC380V (three-phase five wire) consisting of A, B, and C phases plus N (zero) and E (ground) wires.

3. Equipment structure: It consists of a vacuum disinfection room, a nitrogen generator (built-in air compressor, freeze dryer, air storage tank), a vacuum pump, and a PLC control system, which are combined to form an integrated machine.

4. Work pressure: 0.2Kg/cm2

5. Working vacuum degree: 100PA.

6. Working mode: two sets of manual mode or automatic mode.

7. Nitrogen injection method: Automatic injection and replacement through the program.

8. Nitrogen source: Nitrogen generator.

9. Door opening and closing: manual mechanical transmission mechanism.

10. Power consumption: ≤ 8.5KW.

11. Vacuum pump: water treatment>100-500g/h, vacuum pump pumping speed 4-63L/S, vacuum pump noise less than 50dB.

12. Nitrogen generator: adopts a pressure swing adsorption nitrogen production system, with a nitrogen production rate of more than 5M3 per hour, producing nitrogen with a purity of 99.99% and a noise level of less than 56dB.

13. Temperature and humidity sensors and vacuum sensors: Temperature and humidity sensors are used to control the humidity of archives in the disinfection room during the disinfection process. The vacuum sensor can accurately measure positive and negative pressure.

14. Vacuum detector: capable of accurately measuring positive and negative pressure, equipped with a direct coupled vacuum pump, and equipped with an oil mist filter and noise filter on the vacuum pump.

15. Nitrogen content measuring instrument: a specialized instrument for detecting oxygen content, used to determine the oxygen content in disinfection. Require pure 99.99% measurement.

16. Requirements for vacuum nitrogen filling disinfection equipment: The main body of the equipment is a bookshelf type container with a movable trolley that can directly travel to and from the warehouse.

17. Sealing of doors: It is required to use an "O" - shaped rubber ring in the dovetail groove on the fixed flange to achieve positive and negative pressure sealing.

18. After the device is positioned, there are two support feet to adjust the level and stabilize the device.

19. The material of the disinfection room is USU304 stainless steel, and the interior of the disinfection room is matte. The surface of the disinfection room is treated with USU304 stainless steel matte. The disinfection room is connected to the vacuum pump through stainless steel corrugated pipes.

20. The operation of the entire equipment should be programmed, automatically monitored, and controlled by PLC. Equipped with two sets of operation: automatic and manual. When the main power is turned on and enters the automatic working state, it automatically completes, locks the door, evacuates, produces nitrogen gas, fills nitrogen gas, replaces nitrogen gas, maintains pressure automatically, and releases gas automatically. All parameters can be displayed on the touch screen. During manual operation, it is possible to perform single operations such as opening, closing, unlocking, closing, vacuuming, producing nitrogen gas, filling nitrogen gas, and releasing gas. To meet various different state needs. The entire control system is composed of internationally renowned brand electrical appliances.
