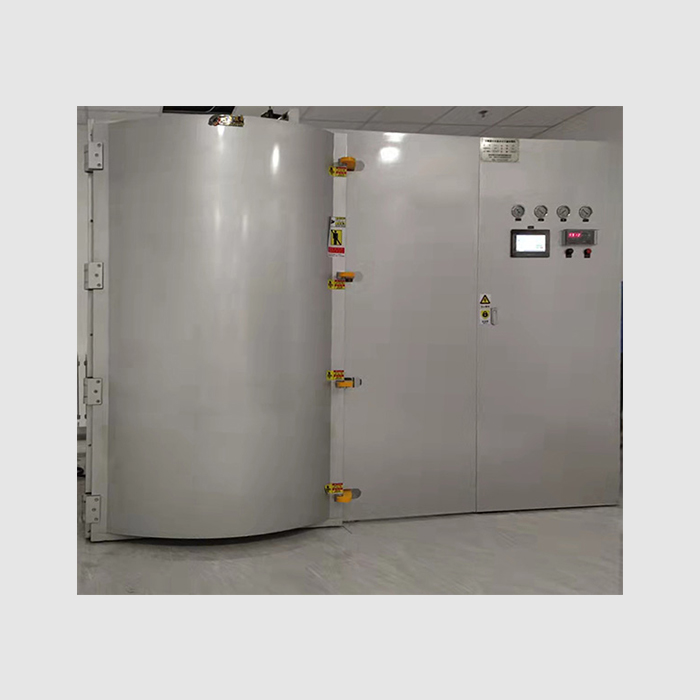

Vacuum nitrogen filled insecticide cabinet

Principle of vacuum nitrogen filled insecticide cabinet:

The vacuum nitrogen filled insecticide cabinet uses a vacuum pump to evacuate the air inside the cabinet, creating a vacuum state, and then fills it with nitrogen gas to reduce the oxygen concentration inside the cabinet, causing pests to suffocate and die. At the same time, nitrogen can also play a role in preventing moisture, corrosion, and mold. So this article will specifically introduce the functions, parameters, and equipment precautions of the vacuum nitrogen filled insecticide cabinet.

Characteristics: Adopting pure physical method, it uses vacuum filling with nitrogen to isolate oxygen, reduce pressure, evaporate, kill insects, sterilize, and disinfect without adding any chemicals or emitting any harmful gases or pollutants.

Function of vacuum nitrogen filled insecticide cabinet:

Insecticidal function:The vacuum nitrogen filled insecticide cabinet can effectively kill various pests such as mice, cockroaches, ants, mosquitoes, etc.

Moisture proof function:The vacuum nitrogen filled insecticide cabinet can effectively prevent items from getting damp, keep items dry and clean.

Anti corrosion function:The vacuum nitrogen filled insecticide cabinet can effectively prevent items from being corroded and keep them intact.

Anti mold function:The vacuum nitrogen filled insecticide cabinet can effectively prevent items from being damaged by mold, maintaining the hygiene and health of items.

Oxygen barrier function:Ensure that the oxygen content of the device is ≤ 1 ‰ in working condition. Produce nitrogen gas from the supporting nitrogen generator.

Evaporation function:During the disinfection process, the liquid inside the insect can evaporate, damaging the proteins of the adult, larva, egg, and pupae.

Insect killing function:It can kill 100% of adult insects, larvae, insect eggs, pupae, and spores in the collection.

Sterilization function：It can kill 100% of oxygen consuming bacteria, and block the growth, breeding, and reproduction of anaerobic bacteria and filamentous fungi.

Dust removal function:It can remove 100% of the dust attached to the surface of cultural relics, archives, ancient books, etc.

Odor removal function:It can remove all odors 100%.

Remote control function:The on-site equipment can be operated through the mobile APP software (in any area of the network), and the parameter screen is consistent with the touch screen. Optional

Automatic humidification function:When nitrogen is injected into the disinfection room, it is humidified by an automatic humidifier to ensure that the humidity in the disinfection room is between 35% and 60%, and the humidity value can be set between 0% and 100% by oneself.

Nitrogen generation function:During the disinfection process, 99.99% high-purity nitrogen gas can be produced and injected into the disinfection room.

display function：Oxygen content, vacuum degree, temperature and humidity detection display function.

Disinfection time:The entire disinfection time is between 15 hours and 72 hours.

Technical parameters of vacuum nitrogen filled insecticide cabinet

1. Capacity of 4 cubic meters, made of carbon steel Q235 material and aerospace material.

2. Working voltage: AC380V (three-phase five wire) consisting of A, B, and C phases plus N (zero) and E (ground) wires.

3. Equipment structure: It consists of a vacuum disinfection room, a nitrogen generator (built-in air compressor, freeze dryer, air storage tank), a vacuum pump, and a PLC control system, which are combined to form an integrated machine.

4. Work pressure: 0.2Kg/cm2

5. Working vacuum degree: 100PA.

6. Working mode: two sets of manual mode or automatic mode.

7. Nitrogen injection method: Automatic injection and replacement through the program.

8. Nitrogen source: Nitrogen generator.

9. Door opening and closing: manual mechanical transmission mechanism.

10. Power consumption: ≤ 8.5KW.

11. Vacuum pump: water treatment>100-500g/h, vacuum pump pumping speed 4-63L/S, vacuum pump noise less than 50dB.

12. Nitrogen generator: adopts a pressure swing adsorption nitrogen production system, with a nitrogen production rate of more than 5M3 per hour, producing nitrogen with a purity of 99.99% and a noise level of less than 56dB.

13. Temperature and humidity sensors and vacuum sensors: Temperature and humidity sensors are used to control the humidity of archives in the disinfection room during the disinfection process. The vacuum sensor can accurately measure positive and negative pressure.

14. Vacuum detector: capable of accurately measuring positive and negative pressure, equipped with a direct coupled vacuum pump, and equipped with an oil mist filter and noise filter on the vacuum pump.

15. Nitrogen content measuring instrument: a specialized instrument for detecting oxygen content, used to determine the oxygen content in disinfection. Require pure 99.99% measurement.

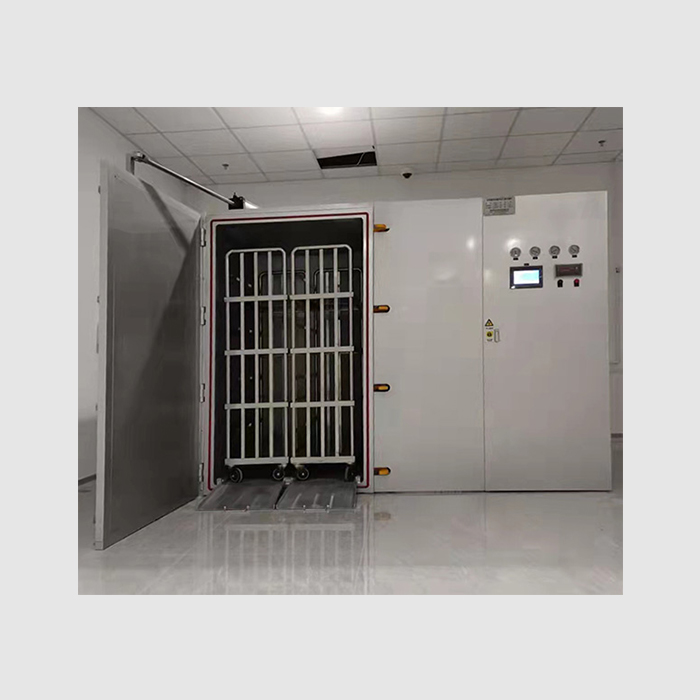

16. Requirements for vacuum nitrogen filling disinfection equipment: The main body of the equipment is a bookshelf type container with a movable trolley that can directly travel to and from the warehouse.

17. Sealing of doors: It is required to use an "O" - shaped rubber ring in the dovetail groove on the fixed flange to achieve positive and negative pressure sealing.

18. After the device is positioned, there are two support feet to adjust the level and stabilize the device.

19. The material of the disinfection room is USU304 stainless steel, and the interior of the disinfection room is matte. The surface of the disinfection room is treated with USU304 stainless steel matte. The disinfection room is connected to the vacuum pump through stainless steel corrugated pipes.

20. The operation of the entire equipment should be programmed, automatically monitored, and controlled by PLC. Equipped with two sets of operation: automatic and manual. When the main power is turned on and enters the automatic working state, it automatically completes, locks the door, evacuates, produces nitrogen gas, fills nitrogen gas, replaces nitrogen gas, maintains pressure automatically, and releases gas automatically. All parameters can be displayed on the touch screen. During manual operation, it is possible to perform single operations such as opening, closing, unlocking, closing, vacuuming, producing nitrogen gas, filling nitrogen gas, and releasing gas. To meet various different state needs. The entire control system is composed of internationally renowned brand electrical appliances.

The vacuum nitrogen filled insecticide cabinet uses a vacuum pump to evacuate the air inside the cabinet, creating a vacuum state, and then fills it with nitrogen gas to reduce the oxygen concentration inside the cabinet, causing pests to suffocate and die. At the same time, nitrogen can also play a role in preventing moisture, corrosion, and mold.

The wide application of vacuum nitrogen filled insecticide cabinets in the protection of archives, cultural relics, and books:

Archive: Used for insecticide and disinfection of archives before storage, ensuring their safety and extending their lifespan.

Museum: precious cultural relics are treated with moisture-proof, preservation, storage, disinfection, sterilization, and insecticide treatment to protect them from pests and fungi.

Library: Insecticidal treatment is applied to books to prevent pest damage and maintain their cleanliness and integrity.

Model: DCZKCD-4

Brand: Dachang

Size: 4.00 cubic meters

Dimensions: Length 2700mm * Width 1600mm * Height 2050mm

Working dimensions: length 1700mm * width 1300mm * height 1800mm

Weight: 1560kg

Aviation material quality: 554kg

Can hold files: 896-906cm

Voltage: 380v/50hz

Power: 8.5kw

Material: Aviation material/Carbon steel

Manufacturer: Ganzhou Dachang Air Conditioning Equipment Engineering Co., Ltd

Shipment date: September 28, 2021

Transportation method: Freight logistics
