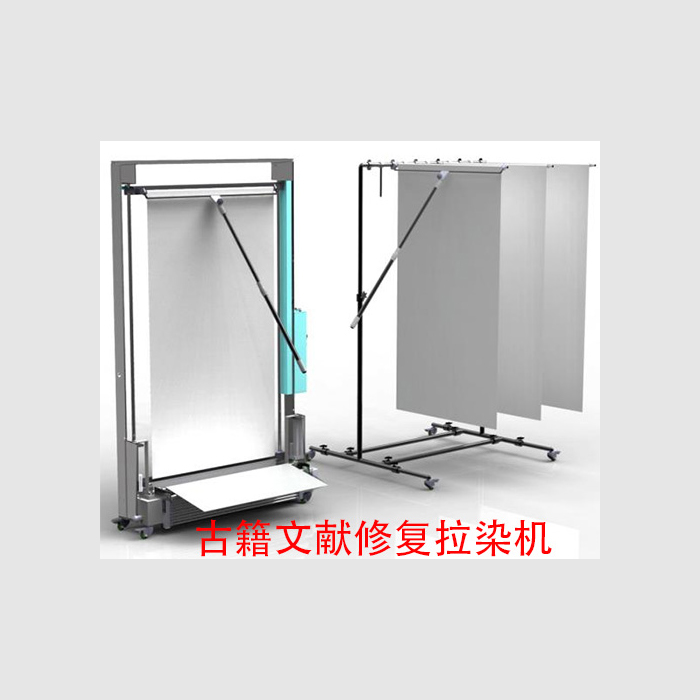

The ancient book restoration and dyeing machine is a mechanical equipment used for ancient book restoration, which can achieve the dyeing of ancient book paper. Using a dyeing machine for repair can effectively remove stains and marks on the surface of ancient book paper, making it look cleaner and smoother.
Purpose: In the restoration of paper documents such as calligraphy, painting, ancient books, and archives, it is necessary to dye new Xuan paper to match the restored object; When dyeing, the dye requires a specific temperature to ensure its uniformity of coloring. The "Ancient Book Restoration Pulling Dyeing Machine" can greatly simplify traditional manual operations, control the dye at a constant temperature, and use a motor to achieve uniform pulling dyeing function, making it convenient and fast to dye paper.
Working Principle
The working principle of a dyeing machine is to immerse ancient paper into a dye solution, and then use the machine's pulling force to evenly absorb the dye on the surface of the ancient paper. In this way, it is possible to achieve stretch dyeing of ancient paper, making its surface look cleaner and smoother.
Performance characteristics
1. Material: The machine base is made of high-quality 304 stainless steel plate as a whole, with high strength and corrosion resistance. The body is made of Q235-A cold-rolled steel and the surface is treated with electrostatic spraying.
2. The transmission method is a worm gear+synchronous belt transmission mechanism, which is non slip and has high self-locking performance.
3. The heating element of the sink is a 24V silicone heating strip with low pressure safety. Adopting temperature control technology to ensure stable and accurate temperature control.
4. The motor is a 24V deceleration stepper motor, using PWM regulation technology for stepless and precise speed control.
Technical Specifications
Model: DC-LRJ
Specification: 1350 * 750 * 2200mm
Width of dyeable paper: ≤ 1100mm
Temperature control range of dye pool: 20-80 ℃ (can be set by oneself)
Pull dyeing rod lifting stroke: 1930mm
Lifting speed of dyeing rod: 20-100mm/s (adjustable by oneself)
Input voltage: 220V 50HZ
Rated power supply voltage: AC220V to DC24V
Power: 600W
Body dimensions: 1350 * 760 * 2210mm
We have briefly introduced the ancient book restoration and dyeing machine here. It should be noted that when using the dyeing machine for ancient book restoration, ★ before using the dyeing machine, the ancient book paper needs to be pre treated to remove surface stains and marks. When using a stretch dyeing machine for stretch dyeing, it is necessary to control the magnitude of the tension to avoid damage to ancient paper. After the stretch dyeing is completed, the ancient book paper needs to be cleaned to remove excess dye, and then dried. When using a dyeing machine for ancient book restoration, it is important to maintain a clean working environment and avoid dye contamination of other items.
