Archive, cultural relics, book mounting, flattening, drying, and restoration machine
-
Model/Taiwan
DCDAXF-7
-
Specifications/Item
125*75*35cm
-
price/Item
Subject to consultation
-
Material/Batch
Carbon steel material

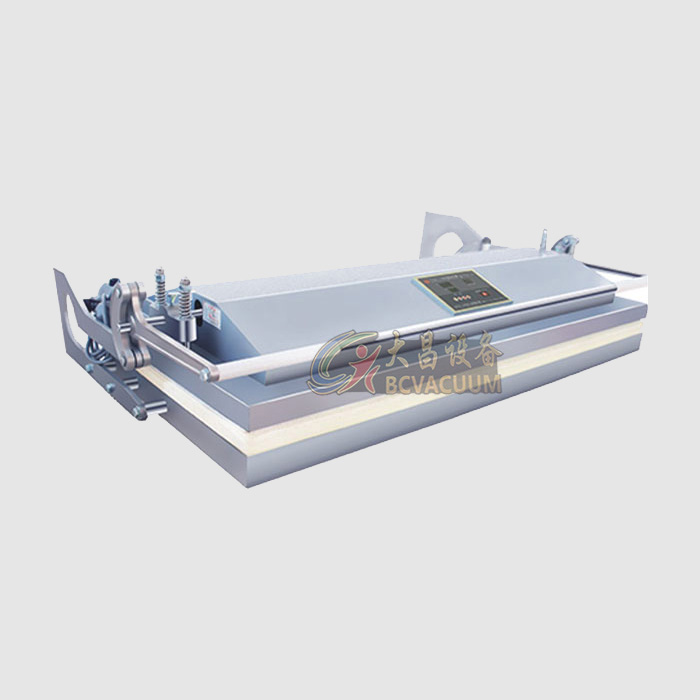

Archive mounting and flattening - DCZBYPJ economical model
Archive mounting machine is used to mount various damaged paper archives, books, documents, and materials. Specialized archival materials such as albums, memorials, hand scrolls, and calligraphy can be completed in one go for complete framing, which cannot be achieved through manual framing. The method of flipping oil paper used in manual mounting can be imitated. For paper archives that have been severely moldy, brittle, and broken, non-woven fabric padding can be used for mounting, which is very simple and more effective than manual mounting.
Dimensions: 125 * 75 * 35cm
Heating surface: 110 * 60cm
Weight: 100kg
Power: 1200W
Voltage: 220V
The machine adopts domestic top heating soft tape as the core, with a design service life of more than 15 years and simple operation performance. The current temperature of the machine is adjusted according to the scale on the temperature regulating knob, with high temperature control accuracy. It can not only be mounted with rice paper, calligraphy and painting, but also cross embroidery, Paper Cuttings, and photos of the later stage of the studio, so as to achieve cross-border use.

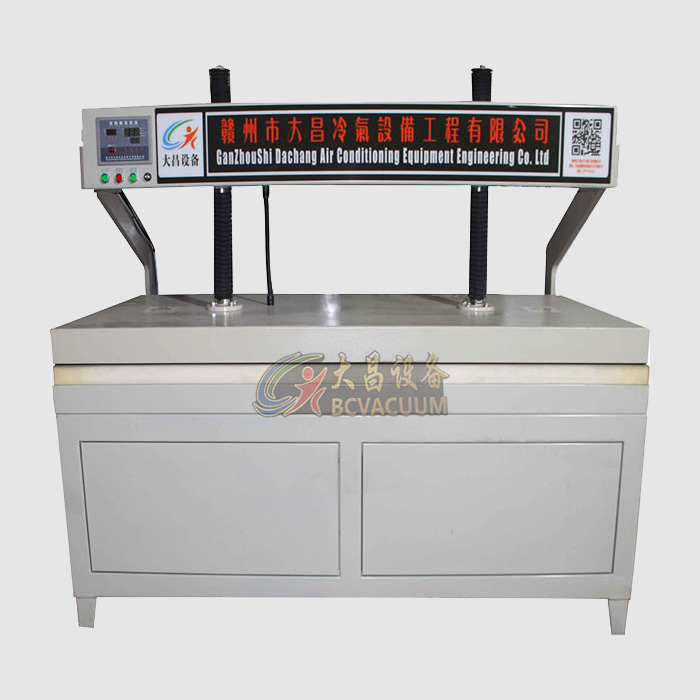

Archive mounting and flattening - DCZBYPJ electric dehumidification (unlimited length and width)
Dimensions: 265 * 145 * 100cm
Heating surface: 250 * 120cm
Weight: 850kg
Power: 4000W
Voltage: 380V
Pure electric power supply, ultra quiet, no need for air compressor (air pump), all series of electric painting and calligraphy mounting and flattening machines adopt the humanized design concept of infinite length and width. Vertical and horizontal travel, four sided entry and exit, quick and safe operation. Using imported heating ribbon as the movement and PID computer temperature control, LCD display, can be timed to rise for 999 seconds. The operation performance is simple, the manual and remote control electric lifting is safe and fast, and the current temperature and heating time of the machine can be seen intuitively. The temperature control accuracy is high. It can not only be mounted on rice paper, calligraphy and painting, but also be mounted on cross embroidery, Paper Cuttings, photos of the later stage of the studio, silk embroidery, Jinbo painting, woven cotton painting and other works. Of course, it can also be applied to other industries to achieve cross-border use.
Archive mounting and flattening - DCZBYPJ pneumatic dehumidification (unlimited length and width)
Dimensions: 175 * 117 * 100cm
Heating surface: 160 * 90cm
Weight: 360kg
Power: 2300W
Voltage: 220V
The pneumatic mounting and flattening repair machine uses imported heating soft tape as its core, which is easy to operate, can intuitively see the current temperature and heating time of the machine, and has high temperature control accuracy. It can not only mount rice paper calligraphy and painting, but also mount cross stitch, Paper Cuttings, photos of the later stage of the studio, silk embroidery, Jinbo painting, woven cotton painting and other works. Of course, it can also be used in other industries to achieve barrier free cross-border use.
