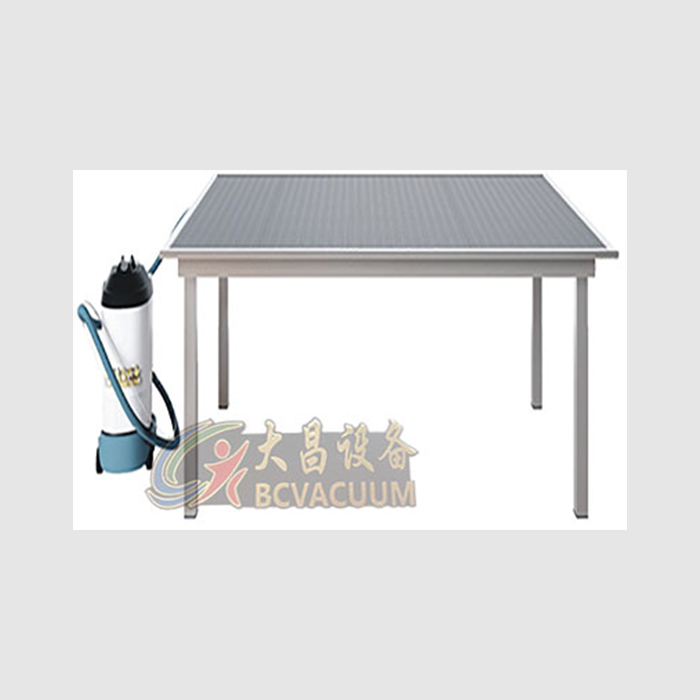

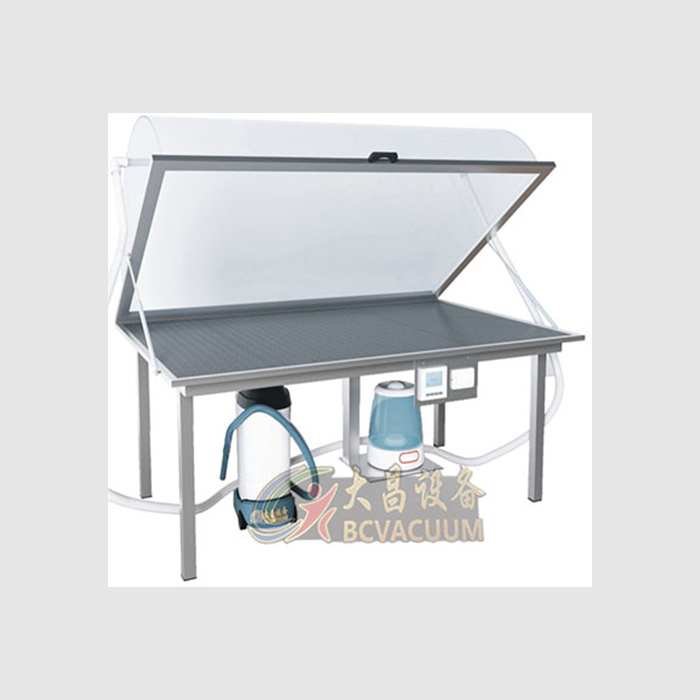

Archive, cultural relics, books, ancient books, paper restoration workbench

Features

1. Cooling system

2. Heating system switch and control unit

3. Vacuum system and automatic pressure control

4. Temperature knob controller display, pressure dial

5. Fault controller, display screen, warning light

6. Two perforated pressure plates with different thicknesses: the upper layer has a hole with a thickness of 1mm and a diameter of 1.5mm, and the lower layer has a hole with a thickness of 2mm and a diameter of 3.5mm.

Technical Specifications

Configuration: Low pressure adsorption, heating, ultrasonic humidification, organic glass dome, drainage, lighting, organic glass dome, fixed support frame, two microporous adsorption plates.

Function: It has the ability to remove dust, oil, Indonesian ink, blood, enzymes, rust, stains, calcifications, and toxic and harmful substances (bacteria, suspended solids, organic compounds) from paper (fabric) through liquid dissolution and filtration.

Brand: Dachang

Specification: 110x150x85cm

Power supply: 220V single-phase,

Power: 2.5kw,

Air suction capacity: 215m3/hour,

Inhalation pressure: 2500mm water column,

Adjustable heating temperature: 90 ℃,

Controller size: 215 * 900 * 200mm
