Multi functional vacuum insecticidal sterilization machine

Function Detailed Explanation

Main functions: insecticide, sterilization, disinfection, odor removal, dust removal, moisturizing, dehumidification, mold prevention; There is no physical or chemical change in the molecular structure of various types of archives and collections such as paper, silk, bamboo, wood, leather, etc. The softness and flexural strength of fiber based collections such as paper have no adverse effects; The equipment is cabinet style (like a refrigerator) using 220V voltage, equipped with a self pulling and pushing archive rack that can be directly transported back and forth to the warehouse, and manually hinged doors.

Insect killing function: capable of 100% killing adults, larvae, eggs, and pupae of all pests in collections and the cultural and museum industry. Generally, any of the tenacious cockroaches, German cockroaches, sweater fish, etc. are the main detection objects, with a killing rate of 100%.

Sterilization function: It can kill 100% of oxygen consuming bacteria, and block the growth, breeding, and reproduction of anaerobic bacteria and filamentous fungi.

Oxygen isolation function: Ensure that the oxygen content of the equipment is ≤ 2 ‰ in working condition

Evaporation function: During the disinfection process, it can cause the liquid inside the insect body to evaporate, destroying the protein of adult insects, larvae, eggs, and pupae

Low temperature function: With the disinfection process, a large amount of water inside the insect body can evaporate, and the temperature on the surface of the insect body drops sharply

Freezing insecticidal sterilization function: It can be used independently for low-temperature freezing. After starting, it can be vacuum disinfected and the room temperature can be reduced to -65 ℃ in 10 minutes (optional)

Remote control function: The on-site equipment can be operated through the mobile APP software (in any area of the network), and the parameter screen is consistent with the touch screen. (Optional)

Working Principle

By vacuuming the studio, oxygen, pressure, and water are quickly eliminated. When a near absolute vacuum environment is reached, pure physical vacuum insecticidal agents are used without heating, pressure, medication, nitrogen, or any insecticidal auxiliary materials. This process does not increase the cost of use and eliminates any harmful physical or chemical components. It is non-toxic, pollution-free, radiation free, odorless, and has no side effects on the human body, environment, or collections.

Related parameters (parameter table)

Chinese English system, Chinese character dot matrix LCD display screen, concise and clear Chinese menu operation, effective and reliable sterilization. And provide English product manuals and operation manuals.

The operation of the entire equipment should be programmed, automatically monitored, and controlled by PLC. Equipped with two sets of operation: automatic and manual. When the main power is turned on and enters the automatic working state, the computer program automatically controls the temperature and humidity display, vacuum measurement, time, vacuum pumping, automatic pressure holding, and automatic deflation. All parameters can be displayed and controlled at a glance through touch screen display and other functions. When operated manually, it can be operated as a single item: vacuum pumping, humidification, and deflation. To meet various different state needs. The entire control system is composed of imported branded electrical appliances.

The product adopts a new process (vacuuming), which has significant energy-saving effect and short vacuuming time.

According to different sterilization requirements, segments can be arbitrarily combined: temperature, pressure, humidity, time, remote communication function, etc.

● It has the function of saving memory during power failure (if the system accidentally loses power during operation, after reconnecting, the system will save the original parameters before the power failure and continue to operate)

The automatic humidification and dehumidification system can ensure that the humidity in the sterilization room is between 35% and 60%, and the humidity value can be set by oneself.

Equipped with automatic Chinese character storage function, recording the entire working process of the device.

● Computer remote communication function, data storage, warning prompt.

The pressure sensor and temperature and humidity sensor are selected from joint venture brand products, with technical indicators far exceeding those of domestic products. The data communication is stable, ensuring the safety and accuracy of equipment use.

Dry to humidity ratio before and after insecticidal treatment: 1: (0.985-0.945)

Temperature ratio before and after insecticidal treatment: 1: (1~1.005)

Insecticidal sterilization and disinfection time (h): 2-8 hours

● Capacity of 0.5-100 cubic meters, made of stainless steel 304 or carbon steel Q235 material, aviation material.

Equipment model: DC-0.5~DC-100

Vacuum chamber: Working chamber volume: 0.5m3-100 m3

● Working vacuum degree: 10PA

Equipment noise: 55 decibels;

● Working mode: two sets of manual mode or automatic mode.

Pump vacuum pump: water treatment>100g/H, vacuum pump pumping speed 4L/S.

● Working voltage: AC220V (single-phase three wire), both single-phase and N (zero). E (ground) line.

After the device is positioned, there are two support feet to adjust the level and stabilize the device.

● Working room size (mm): number of files that can be stored; Power consumption; Please refer to the "Equipment Parameters" table for details such as weight.

Temperature and humidity sensors and vacuum sensors: Temperature and humidity sensors are used to control the humidity of the archives in the toxic chamber during the disinfection process. The vacuum sensor can accurately measure positive and negative pressure.

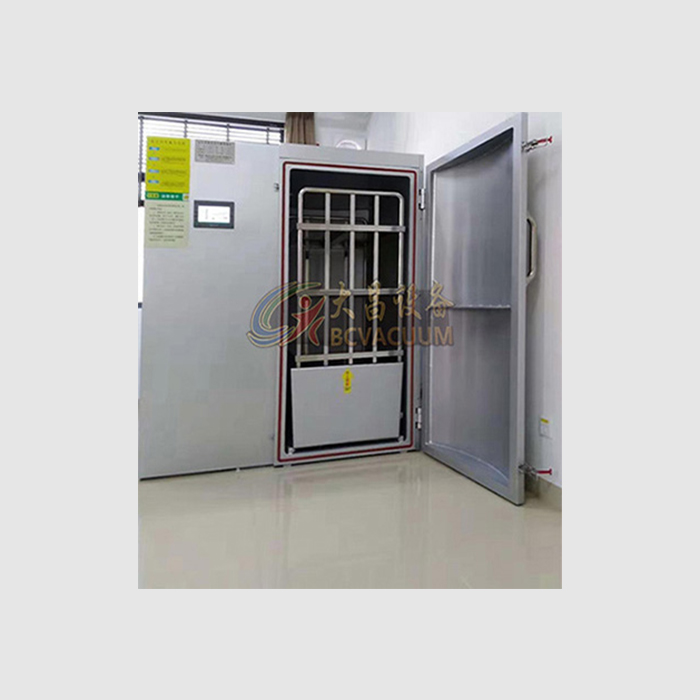

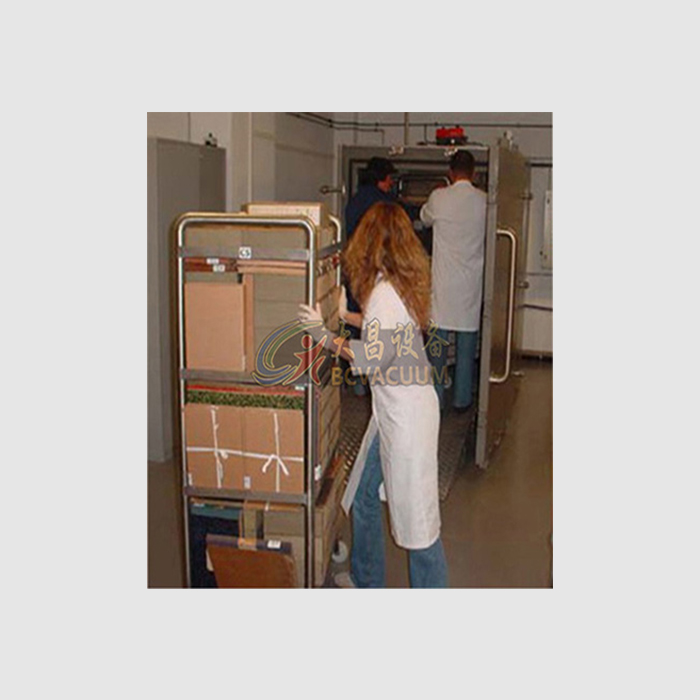

Requirements for archive vacuum insecticidal disinfection equipment: The main body of the equipment is a bookshelf type container with movable carts inside and outside. The specifications of the carts are matched by the size and width of the vacuum chamber. After the inner and outer carts are used together, the carts in the disinfection chamber can directly travel back and forth to the warehouse.

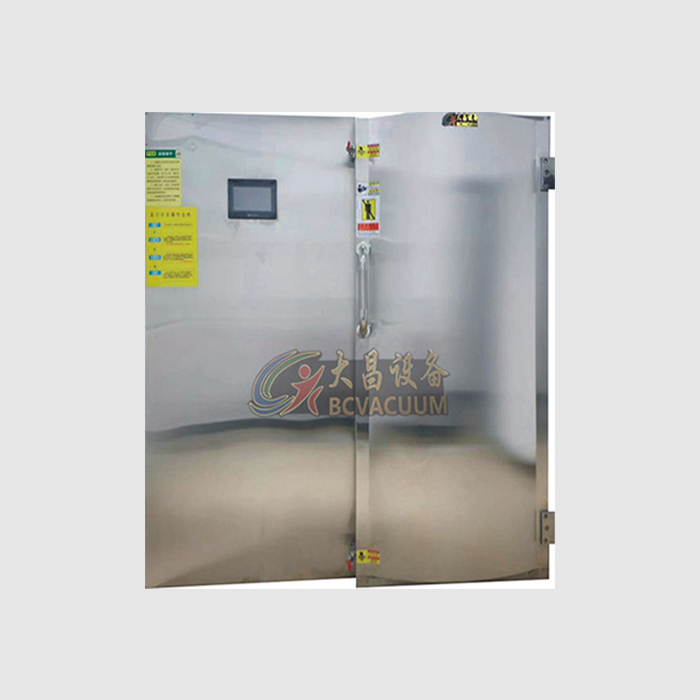

Sealing of doors: It is required to use an "O" - shaped rubber ring in the dovetail groove on the fixed flange to achieve positive and negative pressure sealing.

Equipment structure: composed of vacuum chamber, vacuum pump, humidification system, pipeline connection, electronic components, and PLC control system.

The material of the disinfection room is high-quality Q235 carbon steel or stainless steel, and the interior of the disinfection room is painted and the surface is beautified. The disinfection room is connected to the vacuum pump through stainless steel corrugated pipes.

Provide the model and specifications of the equipment for vacuum disinfection room testing in accordance with TSG21-2016 "Safety Technical Supervision Regulations for Fixed Pressure Vessels", issue a testing report issued by a third-party testing agency, and provide the original qualification certificate of the testing agency.
