Analysis of Plasma Ozone Book Disinfection Equipment
Plasma ozone book disinfection equipment is a professional device that relies on advanced plasma technology to convert oxygen in the air into ozone and implement disinfection. Ozone, as an efficient strong oxidant, has been widely used in disinfection of books, paper, archives and other fields due to its excellent sterilization and disinfection ability, especially in institutions such as archives, libraries and museums.
Functional Principle
The plasma ozone disinfection equipment designed specifically for books has the core function of efficiently disinfecting books. This device uses plasma technology to convert oxygen into ozone, and utilizes the strong oxidizing properties of ozone gas to kill bacteria, viruses, and other microorganisms on the surface of books, thereby achieving the purpose of disinfection. This type of equipment has the following significant characteristics:
1. Efficient disinfection: The generated ozone gas has strong sterilization and disinfection capabilities, which can effectively eliminate microorganisms on the surface of books and ensure disinfection effectiveness.
2. No residue, environmentally friendly: After disinfection, ozone will decompose into oxygen on its own, leaving no harmful residue and harmless to books and the environment.
3. Easy to operate: The device is designed to be intuitive and user-friendly. Users only need to put the book into the device, press the start button, and complete the entire disinfection process.
4. Widely applicable: In addition to books, this device can also be used for disinfection of various items such as clothing, toys, furniture, etc.
Functional Parameters

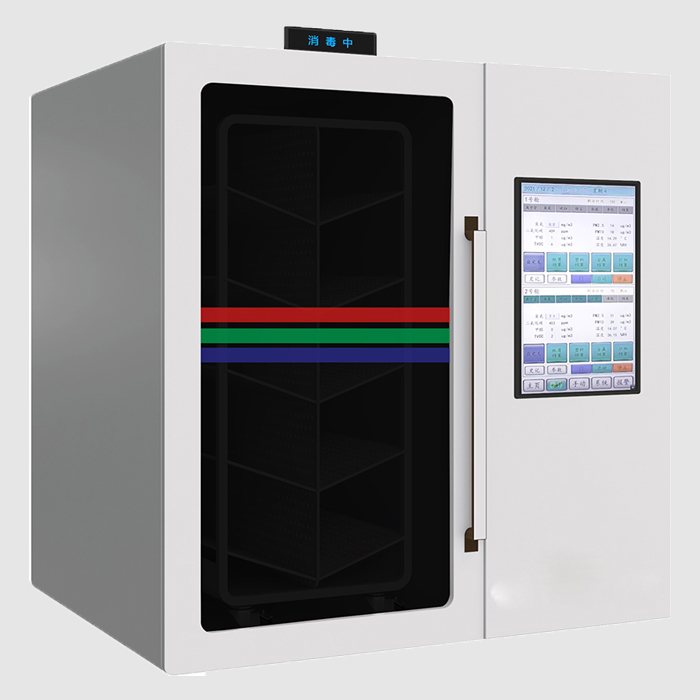

1. The main body of the equipment adopts a flat single compartment structure, equipped with a 32 inch touch screen and an independent disinfection compartment. The compartment door is made of electric hollow transparent glass and aluminum alloy frame, filled with 5cm steel fireproof sandwich panel, and can accommodate 4 to 8 mobile disinfection vehicles.
2. The disinfection vehicle adopts high-quality galvanized profiles, surface electrostatic spraying, equipped with high-strength universal wheels and anti-collision structures. Different shapes can be selected according to needs, and colors are available in white or blue.
3. The equipment power supply is 220V ± 10%, 50HZ ± 1HZ, input power is 2000W, and the suitable ambient temperature is 5 ℃ to 40 ℃.
4. The ozone concentration can be adjusted to 0 to 150mg/m ³ for 60 minutes, with a disinfection cycle of about 2 hours, and the working noise is below 65dB (A).
5. The equipment size is 2550mm wide, 2800mm long, and 2300mm high, and can disinfect 1200 boxes of archives (20mm thick) at once.
6. The equipment supports both manual and automatic disinfection modes, utilizing dual disinfection factors of plasma and ozone, combined with circulation pipelines and negative pressure purification devices, to ensure emissions meet standards and do not cause environmental pollution.
7. The leakage and residual amount of ozone in the disinfection chamber are strictly controlled within a safe range, and the equipment has efficient ozone decomposition and treatment capabilities, which can reduce the ozone concentration in the chamber to below 0.03mg/m ³ within 30 minutes.
8. The equipment is equipped with a humidification device that can adjust the relative humidity inside the disinfection chamber to 45% to 60%. Through gas convection, it acts on the books to improve the disinfection effect.
9. Each disinfection chamber is equipped with two sets of circulating convection disinfection gas operation modes, as well as a dedicated disinfection gas jet system, to ensure the directional blowing and disinfection of each layer of items on the mobile disinfection vehicle.
10. The disinfection and sterilization effect is significant, with a mold killing rate of not less than 97%.
11. The device is integrated with a highly automated control platform, with a user-friendly interface that is easy to use. It is also equipped with system security reinforcement software to ensure stable and reliable operation of the device.
12. The equipment is programmed and controlled by PLC to automatically monitor sensor data and achieve automatic control. Users can set various parameters, including ozone concentration, through the touch screen PM2.5、 Temperature, humidity, etc. to meet different disinfection needs.
In summary, plasma ozone disinfection equipment designed specifically for books has become an ideal choice for disinfecting books and other items due to its high efficiency, no residue, and easy operation.
