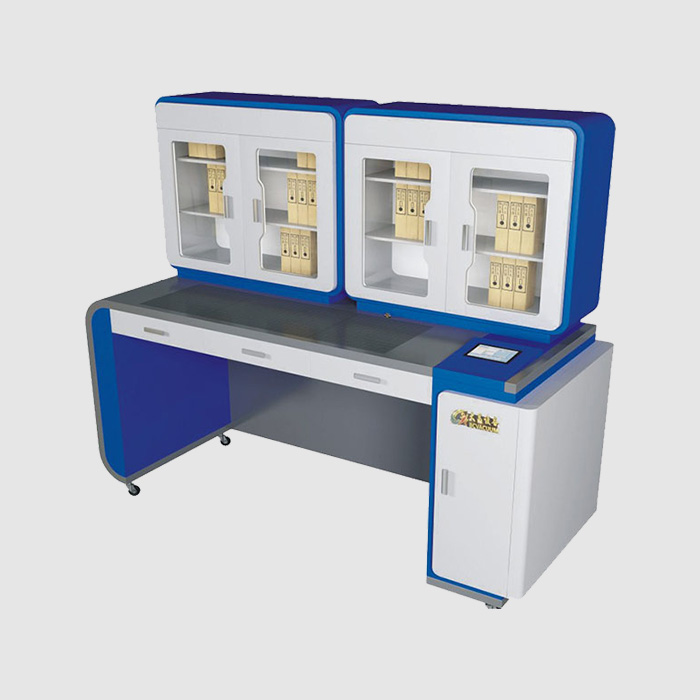

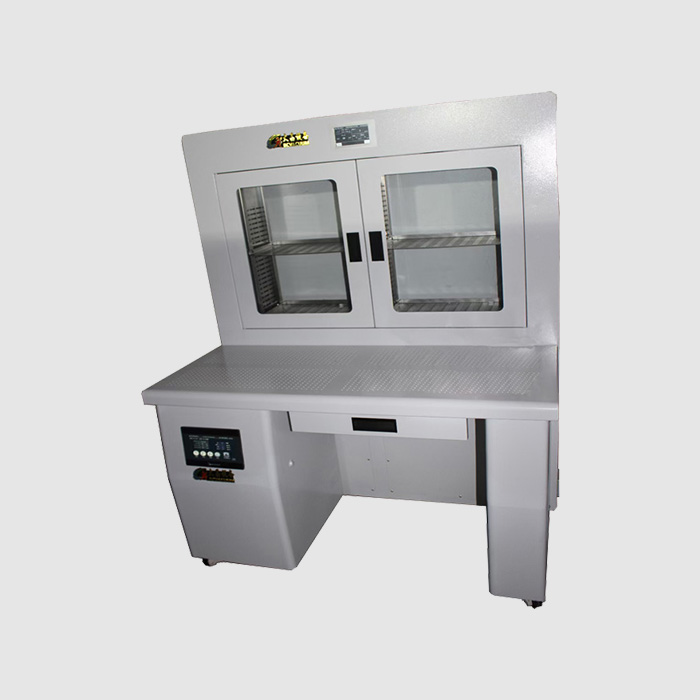

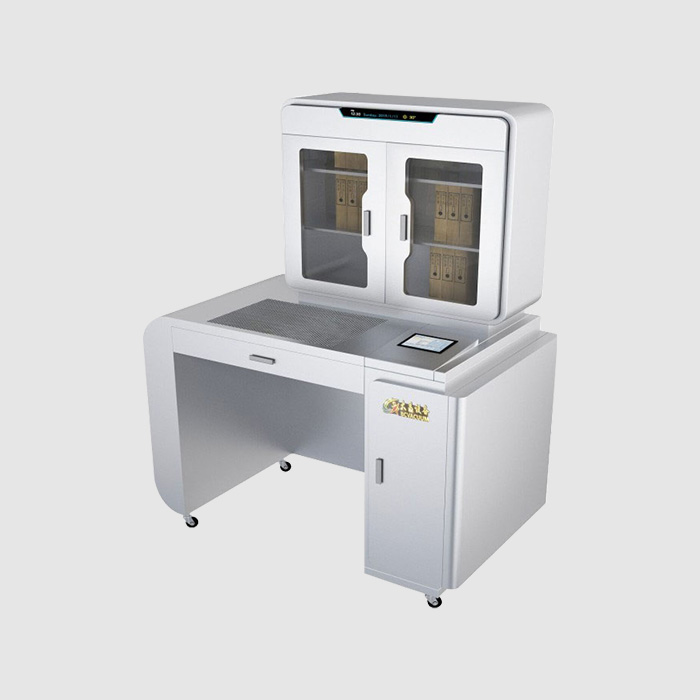

Archive purification work sorting table

Overview

The archive purification and sorting table is designed specifically for the sorting and disinfection of a small number of archives. It consists of two parts: a sorting table and a purification table. It is a product that combines air purification and archive disinfection functions. This product is based on traditional archive sorting workbenches, using corrosion-resistant metal workbenches, integrating negative pressure suction air purification methods, and incorporating nano photohydrogen disinfection technology that is harmless to the human body and archives. Its elegant and beautiful appearance makes it highly practical for archive collection and sorting operations. This product has high PM2.5 purification efficiency, removing formaldehyde TVOC、 Benzene and other complex gaseous pollutants can effectively kill bacteria, viruses, etc. in archive sorting work, providing a healthy and pollution-free environment for archive workers and archive materials.

Features

1. Simplifying complexity: adopting an integrated design of archive organization and disinfection, simplifying the archive organization process and saving space and time costs;

2. Eliminating odors: can effectively remove formaldehyde TVOC、 Various complex gaseous pollutants such as benzene;

3. Efficient dust removal: PM2.5 has a one-time purification rate of up to 99%, which is very effective in removing paper scraps, fine dust, and smoke;

4. Environmental monitoring: capable of monitoring, displaying, and recording the values of temperature, humidity, PM2.5, and TVOC in the working environment;

5. Extreme sterilization: Using nano photohydrogen disinfection technology, the sterilization efficiency of archives can reach up to 99%, which meets the requirements of archive disinfection in archives bureaus;

6. Negative pressure vacuum cleaning: Adopting the air purification method of negative pressure vacuum cleaning, it avoids the phenomenon of pollutants rising and being sucked into the mouth and nose of workers during sorting operations;

A parameter

Model: DCJHT-1

1. Airflow flow pattern: vertical laminar flow (blowing from top to bottom, with the inlet at the top, and primary, secondary, and high-efficiency three-stage filtration);

2. Purification level: Level 100 (US Federal Standard 209E);

3. Colony count: ≤ 0.5 cells/m · h; The filtration efficiency is ≥ 99.995% for dust particles with a particle size of ≥ 0.3um using the sodium flame method;

4. Average wind speed: ≥ 0.5m/s ± 20% (adjustable);

5. Noise: ≤ 62dB (A);

6. Vibration: ≤ 3um (X, Y, Z direction);

7. Lighting: ≥ 300LX; Power supply: 220V 50HZ;

8. Lighting fixtures: 20W × ② lighting fixtures; UV lamp: 20W × ②;

9. Power consumption: The rated power is 800W, using Wuxi Huatong low-noise and high-pressure centrifugal fans, with a quantity of 2 units;

10. External dimensions: 1500W × 750D × 1620H (mm), operating dimensions: 1340 × 700 × 520 (mm);

11. Filter size: Medium efficiency filter size: 437 * 390 × ②; Efficient filter size: 650 * 600 * 120mM × ②;

12. Weight: Approximately 160KG per person;

13. Design: The operating table has a circular arc shape design, a novel punching design for the table, and a humanized design, making employee operations more comfortable;

14. Windshield: The front windshield adopts a 5MM thick fully tempered glass design, and the windshield adopts the principle of lead hammer balance, which can be freely raised and lowered, positioned at any time, and operated more conveniently;

15. Material: The outer box is made of high-quality cold-rolled plate with baking paint treatment (four processes), the color is ivory baked white, and the steel plate thickness is 1.2mm;

16. Table material: The table is made of SUS304 stainless steel with a thickness of 1.2mm;

17. Control method: Adopting an adjustable air volume fan control system, with soft touch switches to adjust voltage, ensuring that the air speed is always in the ideal state;

18. Electrical control: There are UV sterilization lamps, lighting lamps, and fan speed control soft contact switches on the control panel;

19. The bottom adopts high-quality universal mobile wheels and universal fixed wheels, which can be positioned and fixed at any time;

20. All the sealing areas around are treated with American "Dow Corning" brand sealant, which has good sealing performance and is environmentally friendly and healthy;

21. Advantages: All filters are produced in a Class 10000 dust-free workshop, and each one undergoes leak testing before leaving the factory;

B parameters

Model: DCJHT-2

1. Airflow flow pattern: vertical laminar flow (blowing upwards and sucking sideways, with the inlet at the top, primary, middle, and high-efficiency three-stage filtration);

2. Colony count: ≤ 0.5 cells/m · h; The filtration efficiency is ≥ 99.995% for dust particles with a particle size of ≥ 0.3um using the sodium flame method;

3. Average wind speed: ≥ 0.5m/s ± 20% (adjustable);

4. Noise: ≤ 72dB (A);

6. Vibration: ≤ 3um (X, Y, Z direction);

7. Lighting: ≥ 300LX; Power supply: 220V 50HZ;

8. Lighting fixtures: 20W × ② lighting fixtures; UV lamp: 20W × ②;

9. Power consumption: The rated power is 800W, using Wuxi Huatong low-noise and high-pressure centrifugal fans, with a quantity of 2 units;

10. External dimensions: 1440W × 99D × 1595H (mm), operating dimensions: 1400 × 590 × 610 (mm);

11. Filter size: Medium efficiency filter size: 437 * 390 × ②; Efficient filter size: 650 * 600 * 120mM × ②;

12. Weight: Approximately 180KG per person;

13. Design: The operating table has a circular arc shape design, a novel punching design for the table, and a humanized design, making employee operations more comfortable;

14. Internally equipped with photocatalyst and ultraviolet lamp, using ozone ion sterilization technology;

15. Material: The box body is made of SUS304 stainless steel plate, with a thickness of 1.2mm;

16. Table material: The table is made of SUS304 stainless steel with a thickness of 1.2mm;

17. Control method: Adopting an adjustable air volume fan control system, with soft touch switches to adjust voltage, ensuring that the air speed is always in the ideal state;

18. Electrical control: There are UV sterilization lamps, lighting lamps, and fan speed control soft contact switches on the control panel;

19. The bottom adopts high-quality universal mobile wheels and universal fixed wheels, which can be positioned and fixed at any time;

20. All the sealing areas around are treated with American "Dow Corning" brand sealant, which has good sealing performance and is environmentally friendly and healthy;

C parameters

Sterilization module Nano photohydrogen ion sterilization unit

Air inlet sensors PM2.5, PM10, PM1.0, TVOC, temperature, humidity CO2

Air outlet sensors PM2.5, PM10, PM1.0, TVOC, temperature, humidity CO2

The purification table display screen adopts an LCD screen, which clearly displays the disinfection countdown, door opening and closing status, working status of the nano light hydrogen lamp, and simulates the disinfection status using different colored light strips.

The purification table adopts a single cabinet sterilization capacity, which can simultaneously complete the sterilization work of 14 boxes of archives. The partition spacing is 80mm, and the standard sterilization time is 30min (time can be set)

Features

1. Innovative micro negative pressure patented technology efficiently achieves purification and sterilization.

2. There is a negative pressure suction port on the desktop of the tidying table. During the tidying process, dust is sucked into the table with the air and enters the purification unit for purification. The principle of bag filter and high-voltage electrostatic adsorption is used to efficiently remove fine dust; Activated carbon filters purify harmful and toxic gases through irreversible chemical adsorption, and are particularly effective against formaldehyde, benzene derivatives, ammonia, ozone, and other pollutants. Effectively protecting the physical and mental health of the staff during the sorting process, while also preventing various microorganisms produced or carried by the human body from corroding the archives. The purification table adopts a nano photohydrogen ion sterilization structure, with a sterilization efficiency of over 99%. Under limited usage conditions, the sterilization efficiency can meet the requirements of a sterile room.

3. The intelligent system of the archive purification and sorting platform adopts the popular Android platform, which has many advantages of the Android platform: convenient development environment, abundant development resources, stronger open source controllability of the system, more configurable hardware devices, and users are more likely to accept and master the usage mode, reducing the threshold for use.

Control System

1. A brand new interface UI

2. The intelligent system of the archive purification and sorting platform adopts a stylish and technological interface UI design, incorporating the current popular flat design style, combining dynamic and static elements, and also exuding a modern technological atmosphere.

Brand new user interaction

The user interaction mode of the intelligent system for file purification and sorting has been introduced, optimizing the system interface layout and fully utilizing the characteristics of the system and touch screen. Through rich state changes and animation effects, it responds to user touch, sliding and other operations, enhancing the user experience. The main interface of the system displays relevant information about the purification table and the sorting table, and can be used to control the operation mode and fan speed of the sorting table, as well as the switch of the purification table. The relevant information for organizing the table includes: temperature and humidity information, air quality indicators for the inlet and outlet (mainly PM2.5 and TVOC), statistics on the amount of dust cleared, statistics on the number of files organized, the operating mode of the organizing table, and fan speed. The relevant information of the purification station includes: the operating status of the purification station, the remaining time for purification, etc. In addition, maintenance expiration and system failure information will also be displayed in relevant positions on the main interface.

Power on self-test function

The intelligent system of the archive purification and sorting platform quickly self checks the communication status of the system during the startup process. Once there is an abnormality, it quickly prompts on the interface, allowing users to contact relevant personnel in a timely manner for processing, ensuring that the system can be used normally.

Add maintenance information reminders

The intelligent system of the archive purification and sorting platform can provide maintenance information reminders based on the user's usage cycle. When the system needs maintenance, it can promptly remind users to contact after-sales personnel for processing, which is conducive to maintaining the good operation status of hardware equipment and improving its service life.

Rich presentation report

The intelligent system of the archive purification and sorting platform provides data display methods such as curve charts, data lists, and statistical reports, providing users with historical data analysis of temperature, humidity, and air index detection, as well as statistics on dust removal and sorting quantities in archive sorting business.

1. Simplifying complexity: adopting an integrated design of archive organization and disinfection, simplifying the archive organization process and saving space and time costs;

2. Eliminating odors: can effectively remove formaldehyde TVOC、 Various complex gaseous pollutants such as benzene;

3. Efficient dust removal: PM2.5 has a one-time purification rate of up to 99%, which is very effective in removing paper scraps, fine dust, and smoke;

4. Environmental monitoring: capable of monitoring, displaying, and recording the values of temperature, humidity, PM2.5, and TVOC in the working environment;

5. Extreme sterilization: Using nano photohydrogen disinfection technology, the sterilization efficiency of archives can reach up to 99%, which meets the requirements of archive disinfection in archives bureaus;

6. Negative pressure vacuum cleaning: Adopting the air purification method of negative pressure vacuum cleaning, it avoids the phenomenon of pollutants rising and being sucked into the mouth and nose of workers during sorting operations;

7. Innovative micro negative pressure patented technology efficiently achieves purification and sterilization.

8. There is a negative pressure suction port on the desktop of the tidying table. During the tidying process, dust is sucked into the table with the air and enters the purification unit for purification. The principle of bag filter and high-voltage electrostatic adsorption is used to efficiently remove fine dust; Activated carbon filters purify harmful and toxic gases through irreversible chemical adsorption, and are particularly effective against formaldehyde, benzene derivatives, ammonia, ozone, and other pollutants. Effectively protecting the physical and mental health of the staff during the sorting process, while also preventing various microorganisms produced or carried by the human body from corroding the archives. The purification table adopts a nano photohydrogen ion sterilization structure, with a sterilization efficiency of over 99%. Under limited usage conditions, the sterilization efficiency can meet the requirements of a sterile room.

The principle of the archive purification work sorting table is mainly based on negative pressure suction and air purification technology. The following is its detailed working principle:

1、 Principle of negative pressure vacuum cleaning

There is a negative pressure suction port on the desktop of the archive purification work sorting table. When sorting archives, the dust generated will be sucked into the table with the air. This design avoids the floating of dust in the air, effectively reducing the risk of workers inhaling dust.

2、 Air purification process

1. Initial filtration: The air first passes through the initial filtration device, which can remove larger particles and dust.

2. Activated carbon adsorption: Then, the air passes through the activated carbon filter. Activated carbon has strong adsorption capacity and can efficiently remove harmful gases such as formaldehyde, benzene derivatives, ammonia, ozone, etc.

3. Efficient filtration: The air passes through an efficient filtration device, which can further remove fine particles from the air, ensuring a high level of purification efficiency.

3、 Sterilization technology

The archive purification work sorting platform also adopts a nano photohydrogen ion sterilization structure, which can achieve efficient sterilization effect under limited usage conditions and meet the archive disinfection requirements of the archives bureau.
